The stakes are high: poorly wrapped lumber pallets lead to load shifts during transport, moisture damage in outdoor storage, and rejected shipments. According to freight damage data, less-than-truckload shipments experience damage rates of 2% to 5% due to increased handling, and inadequate pallet securing contributes significantly to these losses. The wrong pallet wrapper compounds these problems rather than solving them, turning what should be a protective measure into a liability.
TL;DR
- Standard warehouse wrappers won't cut it for heavy, irregular, weather-exposed lumber loads
- Orbital wrappers bundle long boards; rotary arm and stretch hood systems handle full palletized stacks
- Critical specs to evaluate: 4,000+ lb capacity, 200–400% film pre-stretch, and outdoor storage compatibility
- Five top options reviewed below, matched to different lumber yard sizes and throughput needs
Pallet Wrappers in the Lumber Industry
A pallet wrapper in a lumber yard does more than spin film around a load. These machines secure cut lumber, wood panels, composite boards, and bundled timber for transport and outdoor storage, applying precise containment force while protecting against environmental exposure.
Unlike standard warehouse wrapping, lumber yard applications demand equipment built for high pallet weights, non-uniform shapes, and open-air exposure to rain, UV radiation, and humidity.

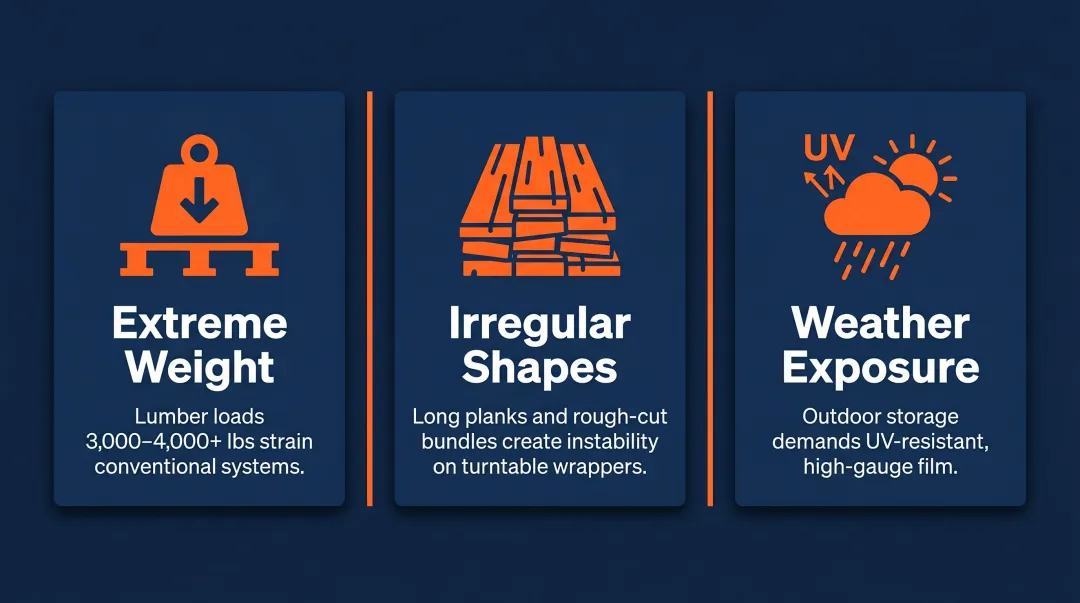

Lumber presents distinct wrapping challenges compared to uniform boxed goods:
- Lumber loads frequently approach or exceed the 3,000–4,000 lb dynamic capacity of standard pallets, putting strain on conventional wrapping systems
- Long planks, rough-cut bundles, and uneven stacks create stability problems that turntable wrappers struggle to handle safely
- Outdoor storage exposes wrapped loads to moisture, temperature swings, and UV degradation that standard 80-gauge film cannot withstand
Each of these challenges points toward a different machine type. The five wrappers reviewed below were evaluated specifically for lumber yard conditions — covering orbital, rotary arm, turntable, and stretch hood technologies — so you can match the right approach to your operation.
Best Pallet Wrappers for Lumber Yards
These five machines were selected based on four criteria:
- Load handling capacity for timber bundle weights and dimensions
- Film performance on wood-based materials with irregular surfaces
- Throughput speed matched to yard volume
- Suitability for both indoor and outdoor lumber yard environments
Robopac Orbit R Series (Orbital/Horizontal Stretch Wrapper)
The Robopac Orbit R Series is a semi-automatic horizontal rotating ring wrapper designed specifically for elongated products like lumber bundles, molding, pipes, doors, and windows. Unlike turntable wrappers that rotate the pallet, orbital wrappers rotate the film ring around the stationary load, wrapping along the length rather than over the top.
The orbital wrapping motion applies consistent tension along the full length of timber bundles, securing cut ends and preventing shifting during transport. Five models (R5, R9, R13, R17, R20) cover ring diameters from 500mm to 2,000mm, accommodating a wide range of load sizes. The system includes a 7-inch color touchscreen storing up to 20 wrapping programs, dual-rod automated film cut and clamp, and R-Connect Industry 4.0 remote monitoring.
| Specification | Details |
|---|---|
| Machine Type | Horizontal Orbital Stretch Wrapper |
| Best For | Long planks, boards, and bundled lumber |
| Ring Diameter Range | 500mm to 2,000mm (varies by model) |
| Control System | 7-inch touchscreen, 20 programmable recipes |
| Connectivity | R-Connect remote monitoring |
Lantech Q-300XT (Semi-Automatic Turntable Wrapper)
The Lantech Q-300XT is a semi-automatic turntable stretch wrapper built for consistent film tension on stable, stacked pallet loads. It serves as a reliable mid-tier option for lumber yards wrapping sheet goods, plywood, and boxed hardware where loads remain geometrically stable.
The Q-300XT's Power Roller-Stretch Plus film delivery system achieves 200% pre-stretch, reducing film consumption while maintaining containment force on heavy loads. The XT Cut and Clamp 5.0 system saves approximately two minutes of labor per load — forklift operators stay on their vehicles throughout the cycle.
At 30-40 loads per hour with a 4,000 lbs maximum capacity, it suits yards with moderate throughput needs and limited floor space. A 5-year unlimited cycle warranty covers all components.
| Specification | Details |
|---|---|
| Machine Type | Semi-Automatic Turntable Stretch Wrapper |
| Best For | Stacked pallets of sheet goods, plywood, and boxed lumber products |
| Pre-Stretch Ratio | 200% |
| Max Pallet Weight | 4,000 lbs (1,814 kg) |
| Throughput | 30-40 loads/hour |
SOCO System PW-1200 (Fully Automatic Turntable Wrapper)
The SOCO System PW-1200 is a fully automatic turntable stretch wrapper featuring an integrated top pressure plate and driven conveyor system for hands-free operation. John Maye Company is the regional distributor for SOCO System in the Midwest, providing factory-trained service and parts support from their Waukesha, Wisconsin facility.
Pallets enter via conveyor, receive automatic top pressure for stability, wrap, and exit without operator intervention — making it well-suited for mid-volume lumber operations running consistent pallet configurations. The PW-1200 handles up to 35 pallets per hour with a 3,307 lbs maximum load weight and fixed 200% pre-stretch. Film alarm notification and brake motor control maintain consistent tension throughout each cycle.
| Specification | Details |
|---|---|
| Machine Type | Fully Automatic Turntable Wrapper |
| Best For | Mid-volume operations with consistent pallet configurations |
| Throughput | 35 loads/hour |
| Max Load Weight | 3,307 lbs |
| Pre-Stretch | 200% (2:1 fixed) |

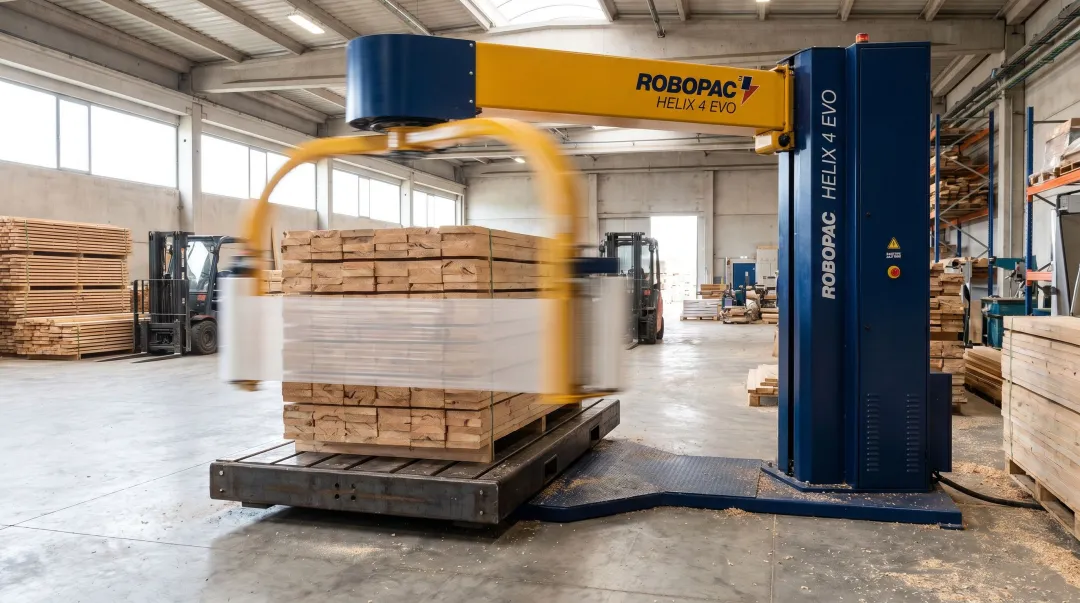

Robopac Helix 4 EVO (Automatic Rotary Arm Wrapper)
The Robopac Helix 4 EVO is a fully automatic rotary arm stretch wrapper where the pallet remains stationary while the rotating arm applies film. This design proves critical when wrapping very heavy or unstable lumber loads that cannot safely spin on a turntable.
The stationary load design handles high pallet weights without tipping risk. Operating at 36 RPM, it achieves throughput of up to 90 loads per hour — the highest rate of any machine in this comparison. The PGSA film carriage delivers up to 400% pre-stretch, cutting film consumption sharply while maintaining containment force. With 4,400 lbs weight capacity via the pneumatic lift system, Cube Technology multi-level variable pre-stretch, and R-Connect remote monitoring, the Helix 4 EVO is built for large-scale lumber distribution facilities that run high daily pallet counts.
| Specification | Details |
|---|---|
| Machine Type | Automatic Rotary Arm Stretch Wrapper |
| Best For | Heavy, unstable, or high-weight palletized lumber loads |
| Throughput | Up to 90 loads/hour |
| Max Load Weight | 4,400 lbs |
| Pre-Stretch | Up to 400% |
Robopac Masterplat Plus (Semi-Automatic Turntable Wrapper)
The Robopac Masterplat Plus is a semi-automatic turntable wrapper offering heavy-duty construction and high pre-stretch performance in a cost-effective platform. It serves lumber yards requiring reliable wrapping of standard palletized loads without the capital investment of fully automatic systems.
The Masterplat Plus delivers 250% pre-stretch as standard — with optional 150%, 200%, or 300% gear sets — reducing film costs per pallet while maintaining load integrity. It handles up to 30 pallets per hour with a standard capacity of 4,400 lbs, expandable to 5,500 lbs with optional configuration.
The 3.5-inch color graphic display with JOG selector keeps operation straightforward, and R-Connect compatibility adds remote monitoring when needed. Variable turntable speed (5-12 RPM) and wrap height up to 110 inches cover the range of load profiles common in lumber yard operations.
| Specification | Details |
|---|---|
| Machine Type | Semi-Automatic Turntable Stretch Wrapper |
| Best For | Standard palletized lumber loads with moderate throughput |
| Throughput | Up to 30 loads/hour |
| Max Load Weight | 4,400 lbs standard (5,500 lbs optional) |
| Pre-Stretch | 250% standard (150%, 200%, 300% optional) |
What to Look for When Choosing a Pallet Wrapper for a Lumber Yard
Not every pallet wrapper is built for lumber. These four criteria will narrow the field quickly.
Load Weight and Stability Requirements
Lumber pallets routinely exceed standard warehouse thresholds. Verify the machine's maximum rated load weight matches your heaviest configurations — turntable wrappers typically max out at 3,300–5,500 lbs depending on the model. Bundled or stacked timber prone to shifting requires separate consideration. Turntable systems work well for stable plywood or sheet goods, but unstable loads exceeding 4,000 lbs demand rotary arm designs where the pallet stays stationary during wrapping.
Film Type and Pre-Stretch Compatibility
Outdoor lumber storage requires higher-gauge or UV-resistant stretch film. According to film application guidelines, lumber and sharp-edged materials typically need 90-150 gauge film (23-38 microns) for adequate puncture resistance, compared to the standard 70-80 gauge used in general warehousing.
Confirm the wrapper supports:
- Film width requirements (typically 20 inches for pallet wrapping)
- Gauge range appropriate for lumber (90-150 gauge minimum)
- Pre-stretch percentage — higher ratios (200-400%) reduce film costs while maintaining containment force on heavy loads

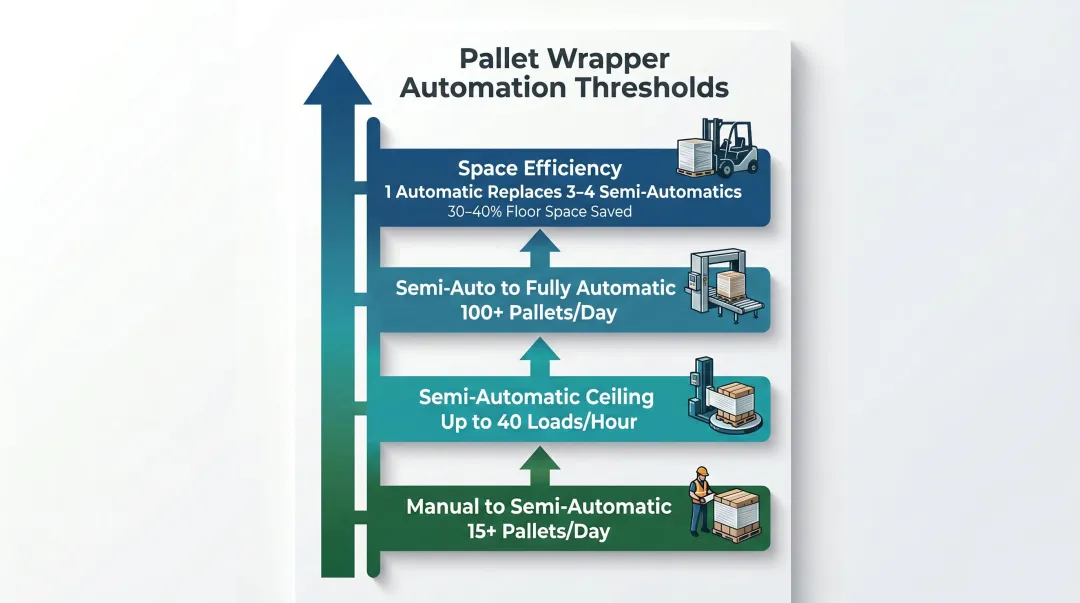

Automation Level Relative to Throughput
Volume-based selection guidelines:
- Manual wrapping to semi-automatic: Transition at 15+ pallets per day
- Semi-automatic ceiling: Effective up to 40 loads per hour
- Semi-automatic to fully automatic: Justify upgrade at 100+ pallets per day
- Space efficiency: One automatic system replaces 3-4 semi-automatics while using 30-40% of the floor space
Source: Lantech automation guidance
Serviceability and Parts Availability
Seasonal demand spikes hit lumber yards hard — a wrapper going down during peak weeks isn't just inconvenient, it's costly. Before committing to a machine, evaluate the service ecosystem around it:
- Factory-certified technicians: Manufacturer-trained service teams diagnose issues faster and keep preventive maintenance on schedule
- In-stock parts inventory: John Maye Company stocks over 2,500 SKUs with a 24-hour ship guarantee for replacement parts, keeping downtime short
- Rental options: Rental equipment covers peak periods or bridges repair gaps without capital expenditure
How We Chose the Best Pallet Wrappers for Lumber Yards
Each machine was evaluated on performance criteria specific to lumber yard conditions, not general-purpose ratings or brand recognition. The assessment covered:
- Load handling capacity — weight limits and stability for irregular, heavy lumber bundles
- Film pre-stretch performance — efficiency and film yield under demanding wrap conditions
- Throughput rate — pallets wrapped per hour at realistic production volumes
- Environmental durability — suitability for outdoor or weather-exposed operation
- Service support availability — parts access, technician response time, and ongoing maintenance coverage
Common buyer mistakes to avoid:
- Choosing a turntable wrapper for loads exceeding the rated weight capacity or with inherent instability
- Underestimating film compatibility requirements—rough-cut lumber surfaces demand higher-gauge film than smooth corrugated boxes
- Focusing solely on purchase price while ignoring total cost of ownership: film consumption, labor per pallet, downtime frequency, and service response time all add up quickly
Conclusion
The best pallet wrapper for a lumber yard depends on three variables: load type (long bundled lumber vs. stacked pallets), required weather protection level, and daily throughput volume. Matching all three to the right machine type delivers long-term ROI rather than short-term cost savings.
Before committing, assess film consumption costs, service response time, and room to scale as volume grows. Those factors often matter more than the sticker price over a three-to-five year equipment life.
For Midwest lumber yards that want a second opinion before purchasing, John Maye Company brings 40+ years of packaging equipment experience to that conversation. Their rental fleet covers seasonal demand spikes, and their manufacturer-trained technicians handle service without extended lead times — a practical combination for operations that can't afford unplanned downtime.
Frequently Asked Questions
What is a pallet wrapper?
A pallet wrapper applies stretch film around a palletized load to secure it for transport and storage. Main types include turntable wrappers, rotary arm wrappers, stretch hooders, and orbital (ring) wrappers — each suited to different load shapes and weights.
How thick is pallet wrap?
Standard stretch film ranges from 47 to 150 gauge (12 to 38 microns). General industrial wrapping uses 70-80 gauge, while lumber and other rough loads call for 90-150 gauge film for adequate puncture resistance and containment force.
What type of pallet wrapper works best for long lumber and boards?
Horizontal orbital (ring) wrappers are purpose-built for long, non-palletized loads like lumber bundles. They wrap film along the length of the load, applying consistent tension to secure cut ends and prevent shifting during transport. The Robopac Orbit R series is a strong example of this category.
Can a standard stretch wrapper handle heavy lumber pallets?
Turntable wrappers have rated weight limits typically ranging from 3,300 to 5,500 lbs depending on the model. Very heavy or unstable lumber loads are better served by rotary arm wrappers where the pallet stays stationary, eliminating tipping risk during the wrap cycle.
How much does a pallet wrapper cost for a lumber yard?
Semi-automatic turntable stretch wrappers range from approximately $5,000 to $15,000, while fully automatic systems start around $50,000 and increase based on throughput capacity and features. Rental or lease options exist for operations with seasonal wrapping volume.
Do pallet wrappers protect lumber from moisture and UV exposure?
Standard stretch wrap offers limited moisture resistance and degrades under UV exposure. For outdoor lumber storage, specify UV-stabilized film at 90-150 gauge, or consider stretch hood systems that fully enclose the load — including the top — for superior weather protection.
