Introduction
When Midwest manufacturers evaluate end-of-line packaging automation, they frequently encounter both Brenton and Orion branded equipment — often without realizing these aren't competing vendors but sister brands under ProMach's Robotics & End of Line business line. Both are manufactured in the same Alexandria, Minnesota facility, yet many operations incorrectly assume they serve the same function or that choosing one eliminates the need for the other.
In practice, the two brands address fundamentally different operational gaps: Brenton handles upstream functions (case packing, palletizing, depalletizing), while Orion secures the final step with stretch wrapping and load containment. Choosing incorrectly — or overlooking one brand entirely — can leave measurable efficiency gaps in your packaging line.
That gap matters more than ever. According to Bureau of Labor Statistics data, 415,000 manufacturing jobs remained unfilled as of June 2025, pushing Midwest operations toward automation to compensate for persistent labor shortages.
TL;DR
- Brenton specializes in robotic palletizers, case packers, and integrated end-of-line systems
- Orion manufactures stretch wrappers and pallet unitizing equipment exclusively
- Both brands share Alexandria, MN manufacturing and engineering teams, making equipment integration straightforward
- Choose Brenton for upstream automation needs (case packing, robotic palletizing, full-system integration)
- Choose Orion for final-stage load protection (stretch film application before shipping or warehousing)
- Most facilities ultimately deploy both brands in sequence on the same production line

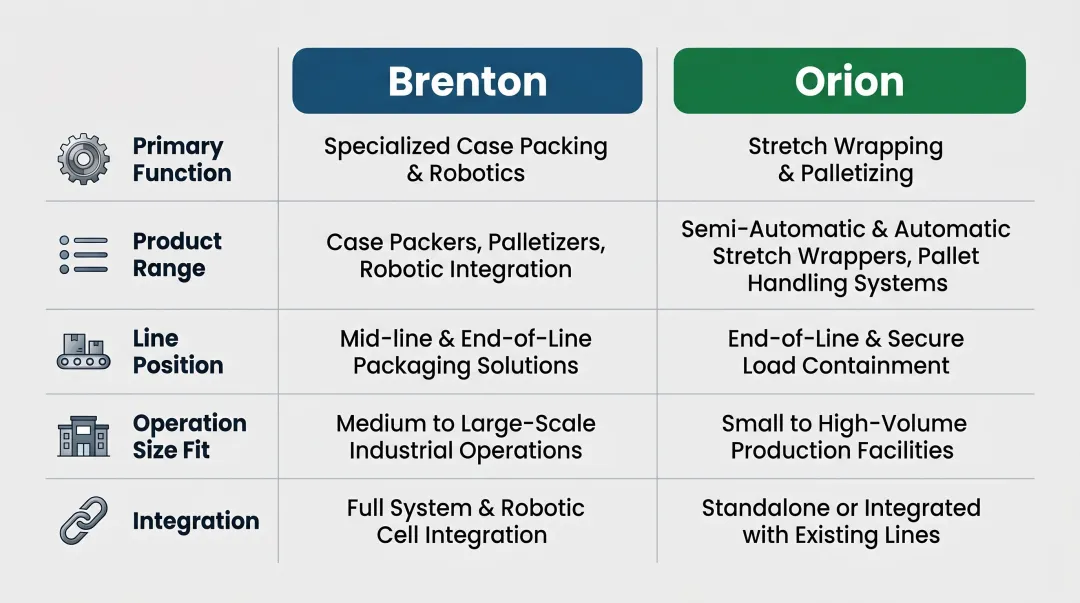

Brenton vs. Orion: Quick Comparison
The table below covers the key differences at a glance — from where each machine sits in the packaging line to which operation sizes they serve best.
| Dimension | Brenton | Orion |
|---|---|---|
| Primary Function | Case packing, robotic/conventional palletizing, depalletizing, integrated end-of-line systems | Semi-automatic and fully automatic stretch wrapping, orbital wrapping, pallet unitizing |
| Product Range | M2000/M4000 case packers (up to 35 cases/min), RPX/RP1000 robotic palletizers, HL1000 conventional palletizer, RD1000 depalletizer | Sentry & Flex semi-automatic turntable wrappers, FA/MA fully automatic rotary systems, Orbital Constellation, IntelleVue HMI accessories |
| Packaging Line Position | Mid-to-end stage (after primary packaging; handles case forming, packing, pallet building) | Final stage (wraps and secures completed pallets before warehousing or shipping) |
| Operation Size Fit | Small-to-large operations requiring automation of labor-intensive packing and palletizing | All operation sizes needing cost-effective load containment — entry-level to fully automated |
| Integration Capability | Integrates with Orion, Wexxar Bel, Federal, and other ProMach brands via Zarpac systems | Designed for seamless integration with Brenton palletizers (e.g., RPX-SW combined systems) |
What is Brenton?
Brenton is a ProMach product brand specializing in end-of-line secondary packaging automation — specifically case packing, palletizing, depalletizing, and full robotic system integration. Headquartered and manufactured in Alexandria, Minnesota, Brenton has completed over 2,600 installations worldwide and holds FANUC Certified Servicing Integrator (CSI) status, placing it among the top 4% of robotic integrators globally.
Core Product Lines:
- Case Packers — side-load (M2000, up to 35 cases/min), direct-load (M4000), robotic top-load (RC1000, RT1000), continuous-motion (XCP Series)
- Palletizers — robotic layer (RPX Series, up to 14 cases/min; RP1000 high-speed) and conventional high-level (HL1000)
- Depalletizers — RD1000 robotic system for incoming material handling
- Integrated Solutions — full turnkey lines coordinating multiple ProMach brands under single-source accountability
Across all product lines, the operational focus is on reducing labor in repetitive case and pallet handling. Touchscreen HMI systems enable rapid changeovers, servo-driven precision reduces product damage, and modular configurations allow facilities to scale from entry-level RPX units to fully custom high-throughput installations.
As a systems integrator, Brenton coordinates not only its own equipment but the broader ProMach family — including Orion stretch wrappers — into cohesive end-of-line solutions with unified design, installation, and performance accountability.
Use Cases of Brenton
Brenton serves manufacturers across food & beverage, pharmaceutical, personal care, and household products who need to automate the move from individual units to cased, palletized loads.
Dominant Applications:
- High-volume food processors automating case packing of pouches or bottles
- Pharma companies managing surge demand for syringes or medical devices during capacity expansions
- Agricultural chemical manufacturers building full integrated lines

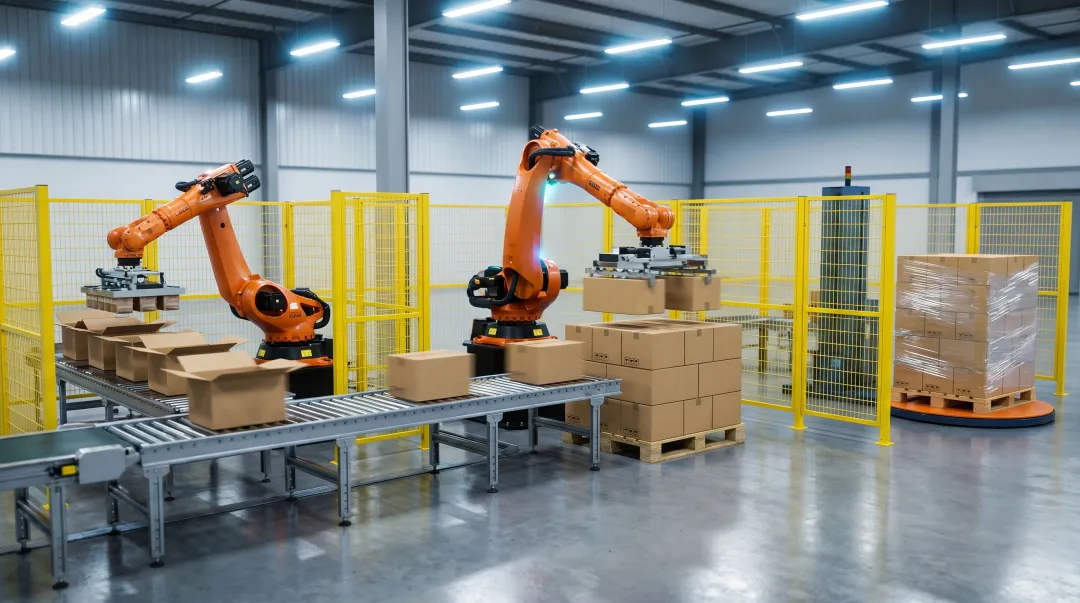

A verified example: Adjuvants Unlimited, an agrochemical manufacturer, deployed Brenton's RD1000 depalletizer and L1000 top-load case packer alongside Orion's MA-DX rotary tower stretch wrapper. The result: 100% production increase versus the previous manual setup, with zero packaging quality complaints reported post-installation.
What is Orion?
Orion is a ProMach product brand designing and manufacturing stretch wrapping and pallet unitizing machinery exclusively. Orion's sole focus is secure containment of completed palletized loads using stretch film — covering semi-automatic, fully automatic, specialty, and orbital configurations. Manufacturing is based in Alexandria, Minnesota at the same facility as Brenton.
Core Product Lines:
- Semi-automatic turntable wrappers: Sentry LP (entry-level, ~$6,250) and Flex series (ships in three weeks or less)
- Fully automatic FA turntable wrappers running up to 75 loads/hour; MA/MA-DX rotary tower systems up to 18 RPM
- Specialty systems including the AXIS six-sided wrapper and Orbital Constellation for long or irregular loads (pipe, lumber, carpet)
- Advanced controls: IntelleVue HMI, Insta-Thread S-Carriage with 260% pre-stretch as standard, and RevoLogic precision wrap counting
Orion's operational impact covers the full end-of-line picture:
- Reduces film consumption — high pre-stretch ratios stretch 1 foot of film across 3.6 feet of load surface
- Improves load stability during transit with consistent wrap tension
- Cuts labor through fully automated wrapping cycles
- Delivers repeatable wrap quality via precision controls
The product line scales with the operation. A small manufacturer can start with a semi-auto turntable wrapper and grow into a fully integrated rotary tower system with conveyance as throughput increases, all within the same platform.
Use Cases of Orion
Orion fits manufacturers whose main challenge is load containment at the end of the line — protecting pallets from shifting, moisture, or tampering during storage and transit. It serves facilities that already handle case packing and palletizing (manually or with Brenton) and need the final wrapping step automated.
Particularly Dominant Industries:
- Food and beverage distributors shipping mixed pallet loads where consistent wrap tension prevents product damage in transit
- Pharmaceutical and medical supply chains where auditable wrap quality supports compliance requirements
- Industrial manufacturers handling windows, doors, pipes, or rolled goods that need orbital or specialty wrapping configurations
Brenton vs. Orion: Which One Does Your Line Need?
Choosing between Brenton and Orion comes down to where your operational gap exists. If product leaves your line uncased or unpalletized, Brenton addresses that. If pallets leave without proper containment and load security, Orion fills that role. Many facilities need both in sequence.
Situational Guidance:
Choose Brenton if:
- Your operation still relies on manual case packing or palletizing
- You're experiencing throughput bottlenecks due to labor constraints
- You need a turnkey integrated end-of-line system with single-source accountability
- You're automating repetitive material handling tasks that risk worker injuries
Choose Orion if:
- Your pallets are already being built but arrive at distribution centers with load damage
- You're wrapping inconsistently or consuming excess film through manual methods
- You need to scale from semi-automatic to fully automatic wrapping as volume grows
- You're shipping specialty loads (long, irregular, or heavy products) requiring orbital wrapping

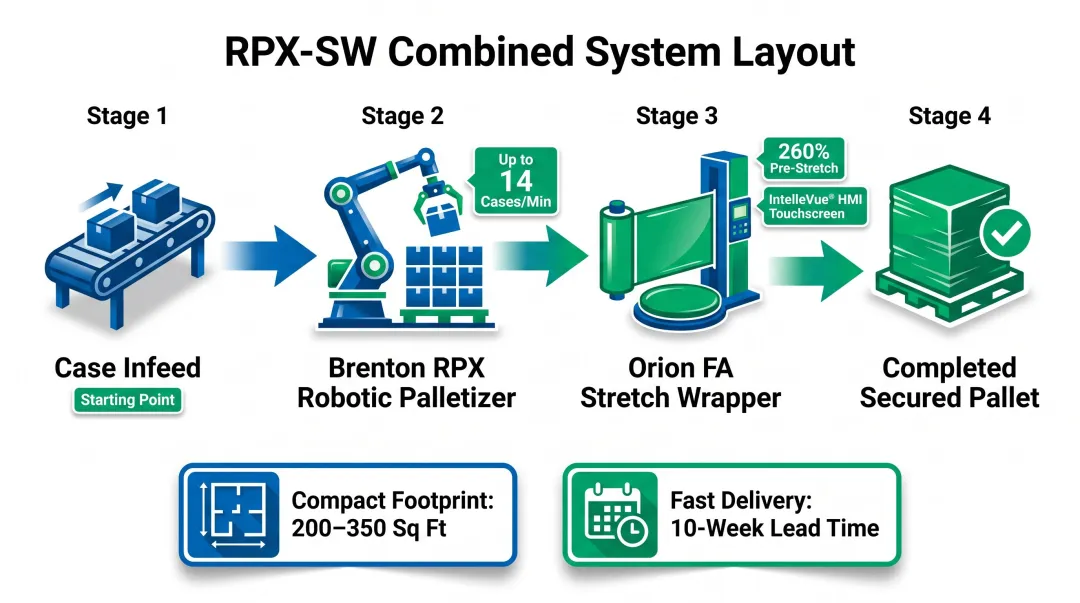

The Integration Scenario: Brenton + Orion Combined
When both gaps exist, the RPX-SW series provides a compact, standardized solution. This combined unit integrates a Brenton robotic palletizer with an Orion FA stretch wrapper in a 200-350 sq ft footprint, rated at up to 14 cases per minute, with delivery in as little as 10 weeks.
The RPX-SW transitions facilities from manual to fully automated end-of-line packaging without requiring separate vendor relationships or integration engineering. The Orion FA wrapper includes a 10-inch IntelleVue touchscreen, Cat-2 safety systems, and the Insta-Thread carriage delivering 260% pre-stretch.
Those specs translate directly to production results. The Adjuvants Unlimited deployment shows what a combined Brenton + Orion line delivers in practice: Brenton handled case packing and robotic palletizing upstream, while Orion's MA-DX rotary tower stretch wrapper managed final pallet containment. The integrated line achieved a 100% production output increase versus the previous setup, with gains in throughput, load quality, and labor efficiency.
For manufacturers across Wisconsin and the broader Midwest, John Maye Company is an authorized distributor for both Brenton and Orion. With manufacturer-trained technicians on staff, they can assess your current line and identify where each brand fits — or whether a combined system makes sense.
Rental fleet options are also available for line trials or seasonal volume spikes, giving facilities a way to validate equipment performance before committing capital.
Conclusion
Brenton and Orion serve different but complementary functions in the packaging line. Neither replaces the other, and the right choice comes down to where your line has gaps. A manufacturer choosing only one when both gaps exist will see diminishing returns.
Facilities that have deployed both brands in sequence report measurable gains in throughput, load quality, and labor efficiency. With 2.1 million manufacturing jobs projected to go unfilled by 2030 and automation investments typically returning ROI within 12-24 months, the pressure to close end-of-line gaps is real — and growing.
The Brenton + Orion combination addresses both the case-packing and palletizing sides of that equation from one manufacturer. If you're evaluating where either brand fits in your line, John Maye Company has distributed both and can help you match equipment to your specific throughput and floor space requirements.
Frequently Asked Questions
Where are Orion stretch wrappers made?
Orion stretch wrappers are manufactured in Alexandria, Minnesota, at the same ProMach facility shared with Brenton. This shared location allows engineering teams from both brands to coordinate directly, which is why combined configurations like the RPX-SW series are possible.
Which operations are best suited for ProMach's Brenton and Orion brands?
Both brands serve a wide range of operation sizes — from small-to-mid-sized facilities using entry-level Orion semi-auto wrappers to large manufacturers running full Brenton-integrated systems. The right fit depends on throughput volume, budget, and how much automation your line requires.
Can Brenton and Orion equipment work together on the same packaging line?
Yes, both brands are specifically engineered to integrate. The RPX-SW combined robotic palletizer/stretch wrapper series is a clear example — Brenton handles the palletizing while Orion handles the wrapping, all within a single automated end-of-line system.
What is the main difference between Brenton and Orion under ProMach?
Brenton handles upstream end-of-line functions (case packing, palletizing, robotic material handling), while Orion handles the downstream final step (stretch wrapping and load containment).
Does Brenton make stretch wrappers?
Brenton does not independently manufacture standalone stretch wrappers. Instead, it integrates Orion stretch wrapping systems into combined robotic palletizing solutions (like the RPX-SW), with Orion serving as the ProMach brand of record for all stretch wrapping technology.
What industries do Brenton and Orion serve?
Both brands serve overlapping industries including food & beverage, pharmaceutical, medical devices, household products, personal care, and industrial manufacturing. Brenton is particularly prominent in high-speed case packing environments, while Orion is essential wherever pallet load containment and film efficiency are priorities.
