Film Wrapper Machines for Professional Packaging Operations

Film wrapper machines can achieve production speeds ranging from 1 to 95 loads per hour, depending on the automation level and machine configuration. For example, fully automatic conveyorized systems can reach up to 95 loads per hour, while semi-automatic models typically handle up to 35 loads per hour.

Fully automatic film wrapper machines operate with no manual film handling — they automatically wrap, cut, and hold film without operator intervention, making them ideal for high-volume production lines. Semi-automatic machines require some operator involvement, such as attaching the film to the load, but still automate the wrapping cycle itself. Fully automatic models generally offer higher throughput, while semi-automatic models are a cost-effective choice for lower-volume operations.

Load capacities vary by model, ranging from 4,000 lbs dynamic capacity on standard turntable wrappers up to 12,000 lbs static capacity on heavy-duty models. Certain machines, such as rotary tower and free-standing designs, offer unlimited weight capacity for floor-supported loads.

Film pre-stretch is the process of stretching the stretch film before it is applied to the load, which reduces film consumption and lowers packaging costs while maintaining strong load containment. These machines offer pre-stretch capabilities ranging from 33% to 313%, depending on the carriage system used.

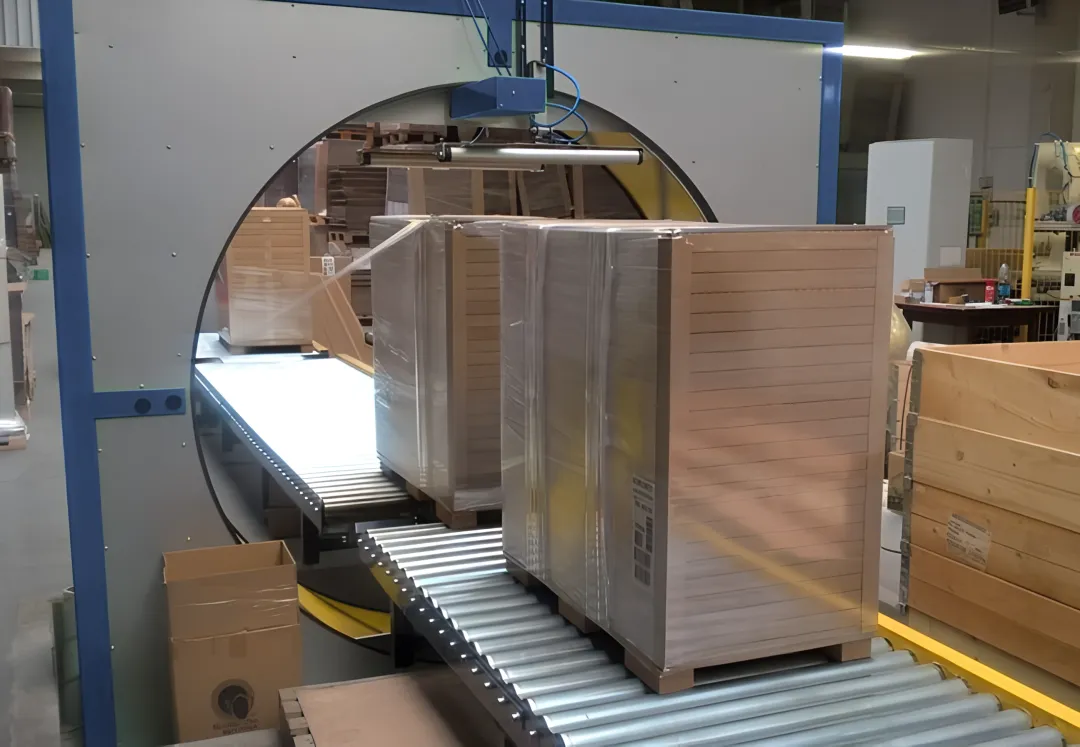

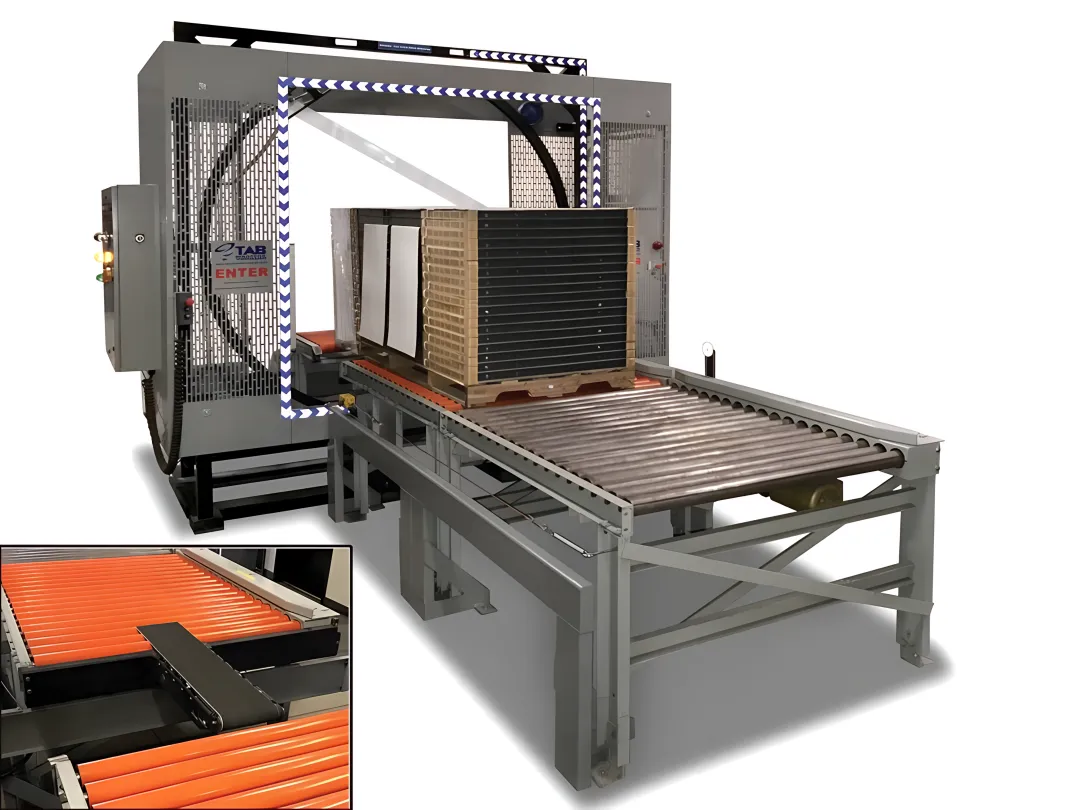

Yes. Orbital wrappers, such as the TAB Wrapper Tornado series, are specifically designed to wrap standard and irregular products with 360° film application around and under the pallet. Rotary ring and horizontal stretch packaging machines also accommodate challenging load shapes and long loads that cannot be handled on conventional turntable systems.

Standard safety features typically include emergency stop systems, wire mesh barriers, safety relays, and obstruction or obstacle sensing systems. Some advanced models also feature proprietary sensor arrays, lanyard switch safety systems, and tower-mounted obstacle sensing for hands-free, fully automated safe operation.

Yes. Film wrapper machines in this range carry recognized industry certifications including UL Listed for electrical safety compliance, CSA Approved for Canadian safety standards, and ISO 9000 for quality management systems, ensuring they meet rigorous industrial and regulatory requirements.
